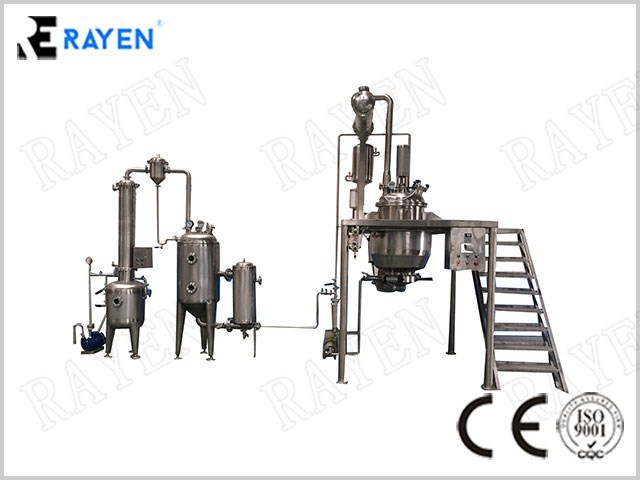

1. Extractor And Concentrator Machine makes use of the methods of vacuum evaporation or mechanical separation to concentrate the materials. it is composed of heater, evaporation chamber, foam remover, condenser, cooler and liquid receiver, etc. All the parts contacting with materials are made of SUS304/316L.
2. The equipmet is suitable for the liquid evaporation&concentration in the industries of pharmacy, food, chemical, light industry, etc. This equipment features short concentration time, fast evaporation time and can protect the thermal sensitivity materials well.
3. At present, in order to improve the concentrated products’ quality, concentrator widely adopts vacuum concentration process. Usually, under 18-8Kpa low pressure state, it heats up the liquid materials by indirect steam heating to make it evaporate under low-temperature. So, the temperature difference between heating steam and liquid materials is larger. Under the same heat transfer condition, its evaporation rate is higher than atmospheric evaporation, which can reduce the liquid nutrition loss.
