Finish:Mirror or Matt Polish; Ra<0.4um

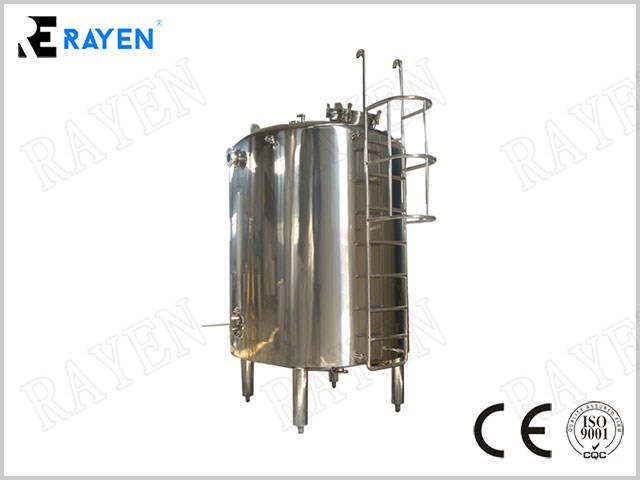

1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases)
4. Design work temperature:-4~~ 150C
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
Certification: CE ISO9001:2000.
| Main Parameters | ||||||
| Model | Equipment volume（L) | Dimension of Tank （MM) |
Agitator type | Outine dimension（mm) |
||
| Length | Width | Height | ||||
| RST500 | 500 | Φ800x900 | (According to customer requirements) | 800 | 800 | 1700 |
| RST1000 | 1000 | Φ1000x1220 | 1000 | 1000 | 2100 | |
| RST2000 | 2000 | Φ1200x1500 | 1200 | 1200 | 2500 | |
| RST3000 | 3000 | Φ1600x1500 | 1600 | 1600 | 2600 | |
| RST4000 | 4000 | Φ1600x1830 | 1600 | 1600 | 2900 | |
| RST5000 | 5000 | Φ1800x2000 | 1800 | 1800 | 3150 | |
| RST6000 | 6000 | Φ1800x2400 | 1800 | 1800 | 3600 | |
| RST8000 | 8000 | Φ2000x2400 | 2000 | 2000 | 3700 | |
| RST10000 | 10000 | Φ2100x3000 | 2100 | 2100 | 4300 | |

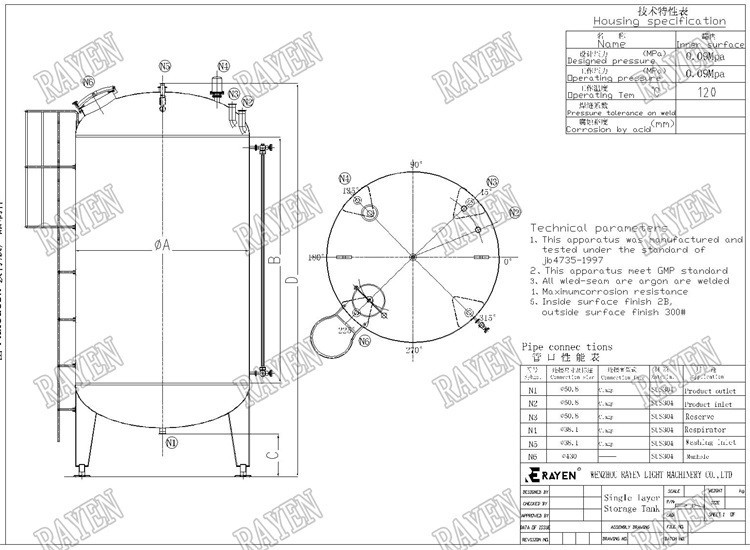

| we can design drawing according to your requirement. | ||||||
